Hot Tubs, Spas, Portable Spas, Swim Spas for Sale Hot Tubs, Spas, Portable Spas, Swim Spas for Sale El Grande EC-1166EX hot tubs for sale

* Images are for illustration purposes only

Write A Review

Features: Elite™ Horizontal Cabinets, 4-Beam Lights, 3x6 HP Eliminator High Performance™ Pumps and Cal Touch™2

Available Seats:

Dimensions: 93" X 131 1/2" X 39

Jet Count: 66

Share This Hot Tub:

* Cal Spas reserves the right to enhance, modify or discontinue products at any time without notice. Specifications may change without notice. Dimensions are approximate.

El Grande EC-1166EX Hot Tub

Info

Specifications

Colors

Options

Documents

Reviews

9-Person Hot Tub with 66 Jets

The limitless bench seating makes this spa most ideal for large parties and entertainment. Step in and rotate between different jet placements as you enjoy the aesthetics of perimeter LED Lighting. Connect your Wi-Fi to control the spa and play your favorite playlist using the Freedom Sound System.

Locate Dealer Request A Brochure Request A Quote

#	Specification	Value
1	Seating Capacity	6
2	Shell Color	Sterling Silver
3	Dimensions (W x L x H)	93" x 131" x 39"
4	Dry Weight - Lbs. (Kilograms)	900 (408 kg)
5	Filled Weight - Lbs. (Kilograms)	8,397 (3,808 kg)
6	Water Capacity - Gal. (Liters)	900 (3,406 L)
7	Eliminator High Performance™ Pump BHP = Brake Horsepower	3 x 6.0 BHP
8	Operating Voltage	240V
9	Stainless Steel Jets: Exclusive Velocity™ Jets	66
10	Dome Jet with Valve (1 Jet)	Whirlpool Jet
11	Water Features : 20" Cascade LED Waterfall	20" LED Cascade Waterfall
12	Gate Valve(s)	Yes
13	Air Venturi Valve	Yes
14	Filter System (Bio-Clean)	100 SqFt (2 x 50 SqFt)
15	Perimiter Underwater LED Lighting Package	Perimeter LED Lighting
16	Whisper Power Unit™ Equipment with Full Color NEW Cal-Spa Touch2™ Panel	BP 501X Touch2 Black
17	Thermo-Shield™ Insulation Side Panels and Thermo-Layer Floor with ABS Liner	Yes
18	WhisperHot™ Heating System	5.5 kW Titanium
19	Pure Silk™ Ozonator with Mazzei Injector and Mixing Chamber	Yes
20	24/7 Filtration Pump System: Fully Programmable Dedicated Pump	Yes
21	Pressure Treated Cabinet Frame	Yes
22	ELITE Horizontal Cabinet Panels with (4) Elite II LED Corners Colors: Grey, Mocha, Lime Oak	Elite Horizontal
23	Elite II Spotlight 4x Cabinet Corners LED Lighting	Standard
24	Cabinet Accessible Drain Valve	Yes
25	Spa Cover: Cal Armor™ (Weather Shield) Colors: Gray, Dark Brown, Black	4“ - 2.5“ Cal Armor™
26	Warranty (Structural)	10 Years
27	Warranty (Finish)	7 Years
28	Warranty (Equipment)	5 Years
29	Warranty (Plumbing)	5 Years
30	Warranty (Cabinet)	5 Years
31	Warranty (Cover)	3 Years

Shell

Acrylic Colors

Sterling Silver

Wispy Blue

Cabinet

Style Colors Choices

Mocha

Coastal

Lime Oak

Cover

Cover Colors

Black

Dark Brown

Grey

Cal Connect RF Module

RF allows faster transfer of heavier data-sets to and from your hot tub.

Cal Grip™

Cal Grip™: Decking Floor Cushion with Safety Steps

Exclusive Adjustable Therapy

Exclusive Adjustable Therapy System™ with Foot Jets

Twin Pure Silk™ System

Dual Ozonators with Mazzei Injectors and Mixing Chambers

Cal Salt Filtration

Cal Salt Filtration System

Pure Cure UV Purification System

24/7 Circ Pump

Premium Horizontal Cabinet Panels

Colors: Teak, Weathered White

Victory Elite LED Corner Upgrade

Freedom™ Sound System

Bluetooth, Powered Subwoofer and (4) 6" Speakers

Thermo-Guard™ Full Foam Insulation

*This Option will Replace Thermo-Shield

WRITE A REVIEW

Hot Tub Cal Salt

Cal Salt™ Filtration Sanitation System produces a pure form of chlorine by electrolysis of salt (NaCl) providing pure sanitized spa water. Once salt in the water is converted to chlorine, bacteria is killed and the chlorine converts back to salt, the process repeats. Importantly, the salt concentration used is very low (less than that in a human tear).

Control Panel

Easily located at the front of the spa, giving you more control over the sanitation of your spa.

Cell & Holder

Installed in the filter area to maximize water flow of the solution throughout the plumbing and out the jets of your spa.

Cal Salt Video

See Cal Salt™ Filtration System at work.

Hot Tub Hydro-Massage Therapy Benefits

There are many benefits to improving your mind and body with each spa manufactured. Customize your Hydro-Massage therapy to meet your goal to a healthier better you.

Seats

Contour Seats

Enjoy form fitted seating as you immerse yourself in a hot tub full of jets designed to provide a superior hydrotherapy massage.

*Seats vary by model

Jets

Exclusive Velocity™ Jets

Strategically placed to hit exact pressure points, which will allow your muscles to decompress. Jets are adjustable at your convenience.

Exclusive ATS Seat Plus

EXCLUSIVE ADJUSTABLE THERAPY SYSTEM™ PLUS

Our patented ATS Plus seat features a dedicated motor and control panel that allows you to personalize your massage to nine distinctive pressure levels.
* Optional Feature, Standard for All Platinums.

Hot Tub Ultimate Performance

Cal Spas prides itself on 100% custom built American-made Spas. We are dedicated to building the most reliable, durable and functional spa in the industry.

Pumps

Eliminator High Performance™ Pump

Cal Spas builds the most reliable motors in the industry. With less moving parts, these motors feature two independent winding speeds and a reverse-flow cooling system. Our pumps are Built to last a lifetime!

Heater

Whisper Hot™ 5.5 kW Titanium Heater

The Whisper Hot Titanium Element in calcified Tube Titanium has become the solution to hot tub heater longevity, and has long been the best defense against chemical & mineral abuse.

Controls

Digital Touch Control

The Digital touch control topside for our spa stands out as one of the most advanced displays in the industry, setting a new standard for spa technology and convenience

Hot Tub Purity

It is necessary that the water in your spa stays purified, and with our filtration system, we make it easy for you.

Ozone

PURE SILK™ SYSTEM

Using Ozonators with Mazzei Injectors Mixing Chambers, will kill microorganisms and prevents them from reproducing. No chemicals are added to the water, and won't interfere with the oxidation process.

Bio-Filter

50 SQ. FT. Bio-Clean™ Teleweir Filter System

A special Filter System bacteria-fighting agent is molded into the fabric of the filter and prevents harmful microbes and bacteria from reproducing.

Hot Tub Efficiency Insulation

Our insulation is the best on the market. We have it down to a science for you to keep your spa protected and the heat locked in and ready to use at any time!

Thermo-Shield

Thermo-Shield™ Side Panel

Our cabinet walls contain premium insulation that is completely recyclable producing less waste than traditional urethane foam. Additionally, the insulation does not block passage to the spa allowing for the highest R rating.

Full Foam

Full Foam Insulation

By adding full foam into the spa structure, water is preserved so the heat does not release. This will reduce the time that it takes to heat and maintain water temperature.

*Optional Feature

Cabinet X-Series

Cal Elite™

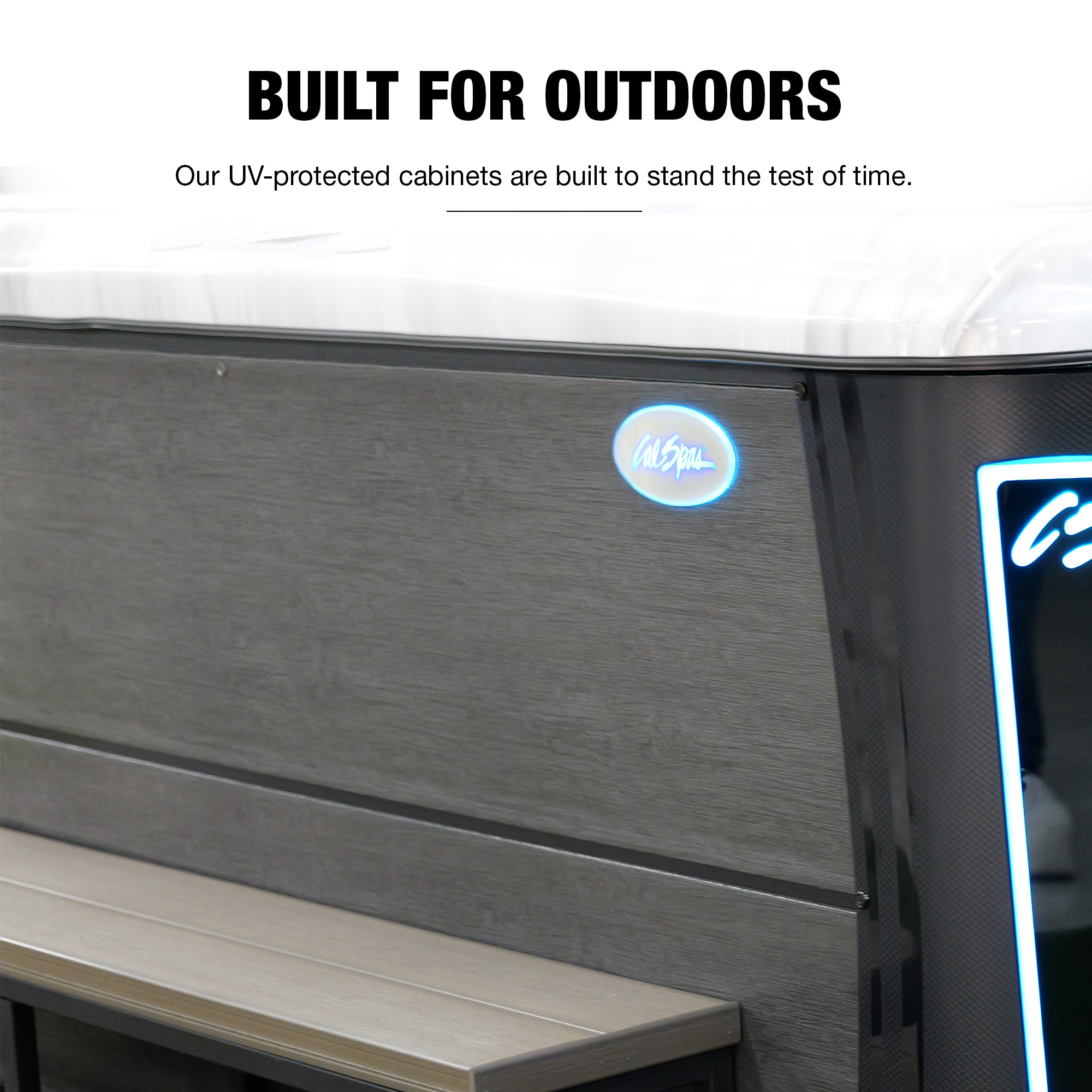

These highly-durable panels uses revolutionary composite materials that will withstand the sun and elements keeping your spa looking newer that will complement any backyard landscape.

Cover X-Series

Cal Armor™ Spa Cover

Same durability and grade as our existing covers but 1/3 LIGHTER and 3X STRONGER!

Hot Tub Strength Starts Underneath

With a strong foundation our spas are built to last.

Fiber Steel

Fibersteel™ Construction

How a Spa shell is built determines everything from longevity to durability to withstand every outdoor element. Cal Spas Patented 5-layer laminate design incorporating reinforced steel and wood is the strongest in the industry. Cal Spas Fiber steelTM process has proven to lead the industry in shell design, efficiency and performance.

Frame

Pressure Treated Wood Cabinet Frame

Our cabinet frames are treated to resist rot, corrosion and insects. Constructed using 1" galvanized steel fasteners, corner gussets, and vertical angle bracings for added beam support.

Plumbing

Tru Blue™ Vacuum Break Intake System

This VGB Approved safety break feature automatically reduces pump suction in the event of an obstruction or intake blockage.

Foam

Hydro Steel Foam

This high-density foam is added to support the plumbing underneath so nothing gets out of place

Hot Tub Life Pleasures

To be in a spa feels great, add the extra, then it becomes perfect!

Ergonomics

Cal Spas Cascade Pillows

Relax your head and neck with this soft, smooth and super-comfy spa pillow !

Water Feature

Curved Cascade LED Waterfall

Enjoy the sound of a Cascading Waterfall while multi-colored LED lights stream a sequence of vibrant colors.

Escape

Patented Molds

You will know the meaning of "escape" when you sit on one our Escape Series Spas. With meticulously designed and trademarked / patended molds that will hug your body like a hand-in-a-glove.

Sound System

Freedom™ Sound System

Includes Bluetooth, Powered Subwoofer and Cube Speakers. Bluetooth technology lets you control your music through your smart device from anywhere inside, or outside your Cal Spas Hot Tub.

WI-FI

Wi-Fi Module

Using Wi-Fi allows you to control your spa from anywhere in your home. Turn your spa on and off with ease. Control your filter cycles, the temperature and the pumps. You choose!

*Optional Feature

WI-FI Upgrade

Wifi Connect

Upgrade to Wifi Connect. This innovative feature leverages the power of your home’s Wi-Fi network, granting you remote access to control your spa anytime, from anywhere within your connected environment.

Interior Lighting

LED Spa Lighting Package

Enhance your spa session in your backyard by turning on the lights to your spa. Choose between seven colors, two color modes or shine on a particular hue with on/off functionality.
